Inconel 625 ERNiCrMo-3 Welding Wire for Corrosion Resistance

Name: Inconel 625 ERNiCrMo3 Welding Wire for Corrosion Resistance
Brand: HUONA
Price: 1 USD

Brand Name : HUONA

Model Number : WIRE

Certification : ISO9001

Place of Origin : CHINA

MOQ : 15KG

Price : Bargain

Payment Terms : T/T

Supply Ability : 10000ton /year

Delivery Time : 7–15 working days for standard sizes

Packaging Details : Case

Coil/Spool Weight : 5kg / 10kg / 15kg / 20kg

Wire Diameter : 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable)

Welding Process : MIG / TIG

Tensile Strength : ≥760 MPa (110 ksi)

Yield Strength : ≥380 MPa (55 ksi)

Elongation (in 2") : ≥30%

Contact Now

Product Description

Product Name: Inconel 625 Welding Wire
AWS Classification: ERNiCrMo-3
Type: Nickel-Chromium-Molybdenum alloy filler wire
Form: MIG (GMAW) or TIG (GTAW) wire
Standard Compliance: AWS A5.14 / ASME SFA-5.14

Inconel 625 welding wire is a premium nickel-based filler metal formulated for joining and surfacing applications that demand superior corrosion resistance and high-temperature strength. It contains significant amounts of chromium, molybdenum, and niobium, making it highly resistant to pitting, crevice corrosion, stress corrosion cracking, and oxidation in harsh environments, including seawater, chemical processing, and high-heat zones.

This wire is suitable for welding Inconel 625, Inconel 601, and similar nickel-chromium-molybdenum alloys, as well as dissimilar metal welding involving stainless steels and low-alloy steels.

Inconel 625 ERNiCrMo-3 Welding Wire for Corrosion Resistance

Key Features

Exceptional corrosion resistance in seawater, acidic, and chloride-rich environments
Outstanding strength and oxidation resistance at elevated temperatures (up to 1000°C / 1830°F)
Excellent weldability with low spatter and smooth bead finish
Ideal for dissimilar metal welding (Ni to SS, Ni to low alloy steel)
Available for both MIG and TIG welding processes

Typical Applications

Offshore and marine structures
Heat exchangers and pressure vessels
Chemical processing and petrochemical equipment
Aerospace engine components and exhaust systems
Power generation, including waste incineration plants
Piping and tanks exposed to seawater or aggressive chemicals

Chemical Composition (Typical, %)

Element	Content (%)
Nickel (Ni)	Balance
Chromium (Cr)	20.0 – 23.0
Molybdenum(Mo)	8.0 – 10.0
Iron (Fe)	≤5.0
Niobium + Ta	3.15 – 4.15
Carbon (C)	≤0.10
Manganese (Mn)	≤0.50
Silicon (Si)	≤0.50
Sulfur (S)	≤0.015

Mechanical Properties (Weld Metal Typical)

Property	Value
Tensile Strength	≥760 MPa (110 ksi)
Yield Strength	≥380 MPa (55 ksi)
Elongation (in 2")	≥30%
Hardness (HB)	~200

Product Specifications

Item	Specification
Wire Diameter	0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable)
Coil/Spool Weight	5kg / 10kg / 15kg / 20kg
Welding Process	MIG / TIG
Shielding Gas	Ar or Ar+He for TIG / Ar+CO₂ for MIG

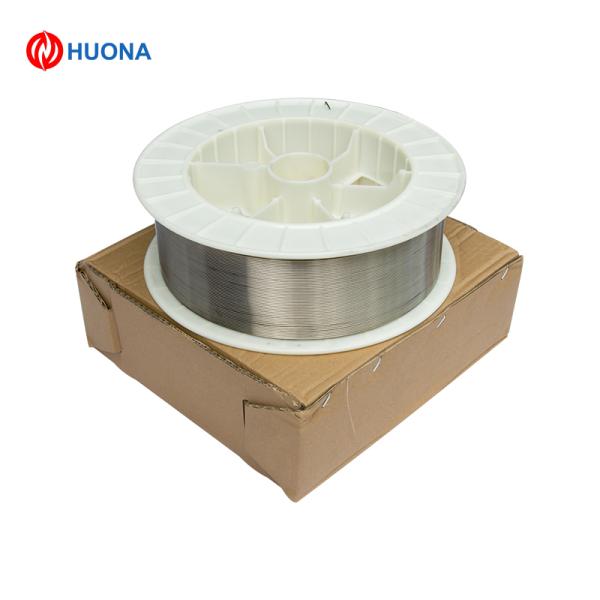

Packaging	Vacuum-packed spools, export cartons
OEM Service	Available (custom labels, branding, etc.)

Packaging & Delivery

Plastic spool, steel basket, or straight length rod
Vacuum-sealed and rust-proof packaging
Export cartons with pallet
Lead time: 7–15 working days for standard sizes
Free sample available for evaluation

Note:

We also offer matching Inconel 625 welding rods and custom formulations for high-performance welding applications. Please contact us with your specifications or for a technical consultation.
